Virtual Labs for Chemical Engineering

Three virtual laboratories for reaction engineering and separation processes. Your students carry out virtual experiments, collect their own data and work out what it means.

Request a teacher account

Step Into the Lab

Enter your email to receive a secure login link.


OR
Sign in with Microsoft

New student? Create your account with your teacher's token.

Three laboratories

Reaction laboratory

Kinetics and ideal reactors, from a batch reactor to tubular reactors in series with heat exchangers.

More on the reaction laboratory

Column laboratory

Adsorption and chromatography in a packed column, step by step or as a whole cycle.

More on the column laboratory

Membrane laboratory New

From microfiltration to reverse osmosis, in a dead-end cell, a cross-flow rig and continuous stages.

More on the membrane laboratory
Reaction engineering

Reaction laboratory

Students find rate laws from their own experiments, and then size and run reactors with them.

  • Liquid and gas phase reactions, isothermal or adiabatic
  • Without a catalyst, or with homogeneous, heterogeneous or enzyme catalysis; packed beds with pressure drop
  • Flow reactors from start-up to steady state, in real time or in lightning mode
  • Data as Excel and MATLAB files for the analysis

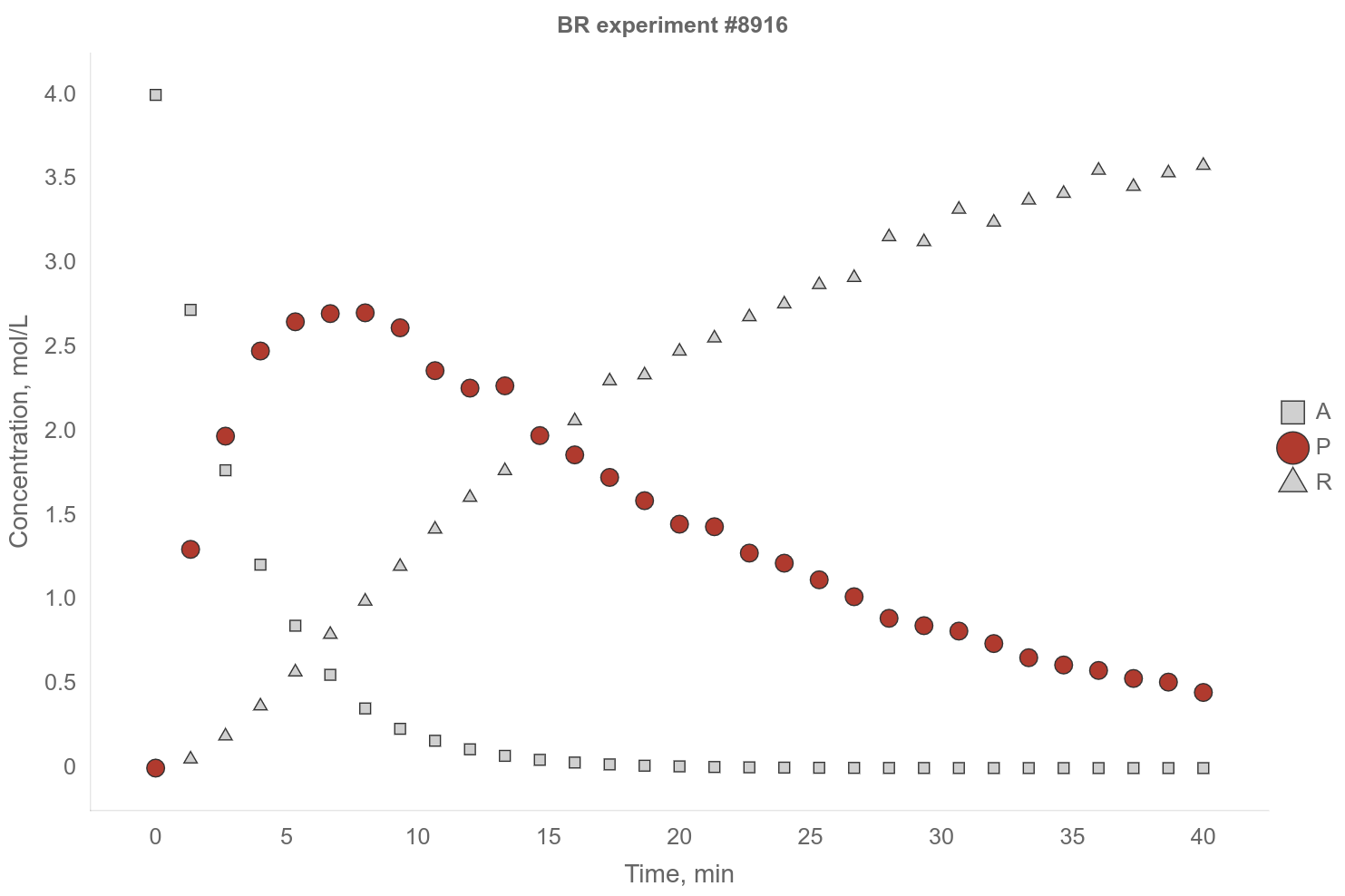

Chart of a batch reactor experiment: the concentrations of A, P and R against time
New

Tubular reactors in series with heat exchangers

Two to six adiabatic plug-flow reactors with a heat exchanger between each pair. The student sets the temperature after each exchanger, or switches it off, and reads the temperature and the composition at every reactor outlet and the heat each exchanger takes or gives. Enough to follow an exothermic reaction step by step towards its equilibrium.

Readings of one experiment in the laboratory: three reactors, the stream cooled to 480 K between them.
Reactor Inlet, K Outlet, K Heat exchanger after it
PFR 1 490 593 to 480 K, 2780 J per litre of feed removed
PFR 2 480 522 to 480 K, 1042 J per litre of feed removed
PFR 3 480 503 none
Separation processes

Column laboratory

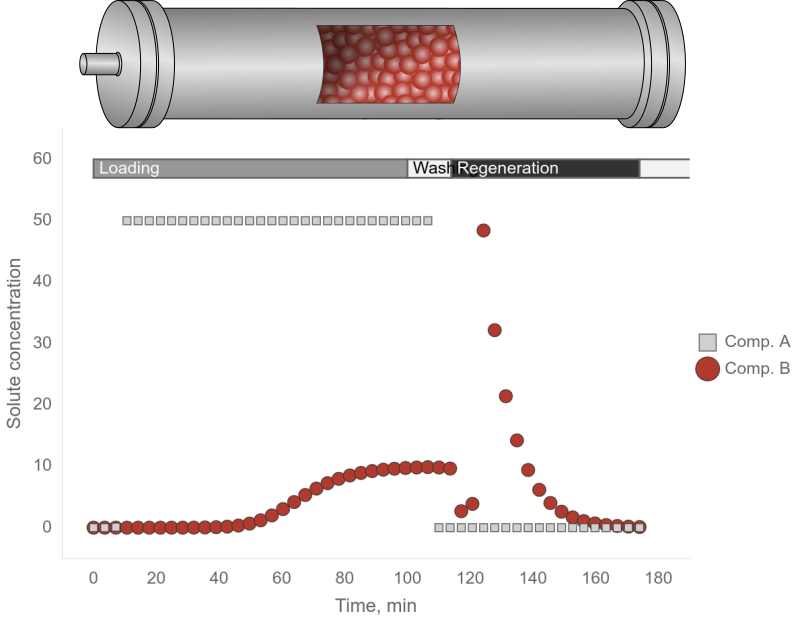

An adsorption column and the concentrations at its outlet during loading, washing and regeneration

Adsorption

A packed column, or a stirred tank for batch adsorption. Students run loading, washing and regeneration one by one or as a cycle. The adsorbent can keep its state from one experiment to the next, so a column that was not regenerated shows it.

Chromatogram of two compounds over two cycles

Chromatography

Linear and non-linear chromatography with up to six compounds. Students see what particle size, flow rate and the size of the column do to the peaks, and can repeat the injection over up to three cycles.

Data as Excel and MATLAB files for the analysis.

Separation processes

Membrane laboratory New

From microfiltration to reverse osmosis, in three units.

Dead-end cell

A cell with or without a stirrer, for cake filtration and a first look at flux and rejection.

Cross-flow rig

A tank, a pump and a tubular or slit module. Students choose the cross-flow velocity and run total recycle, concentration or diafiltration.

Continuous stages

Stages at steady state, completely mixed or in plug flow: up to four in series, or two passes.

What students meet

  • Concentration polarisation, cake and gel layers, osmotic pressure and solubility limits
  • Rejection by size and, in nanofiltration, by charge
  • Ready feeds from yeast and proteins to sugars and salt solutions up to seawater strength, or a feed of your own
  • Size-exclusion analysis of the samples of a polydisperse feed
  • Data as Excel files for the analysis
For teachers

How a course runs

  1. Build a task

    Pick the laboratory, the system and what students may vary. Give every student or group their own parameter values, and add measurement noise if you like.

  2. Hand out the token

    Each assignment has a token for the whole class, or one for each group, as text or as a QR code. Students create their account with it and land in your course.

  3. Students experiment

    In real time, where a five-hour experiment takes five hours, or in lightning mode.

  4. See the results

    Follow each student's or group's experiments, look at the data of any of them and download it as an Excel file.

Request a teacher account

A teacher account comes with a 7-day trial course.

I am a student with a token
